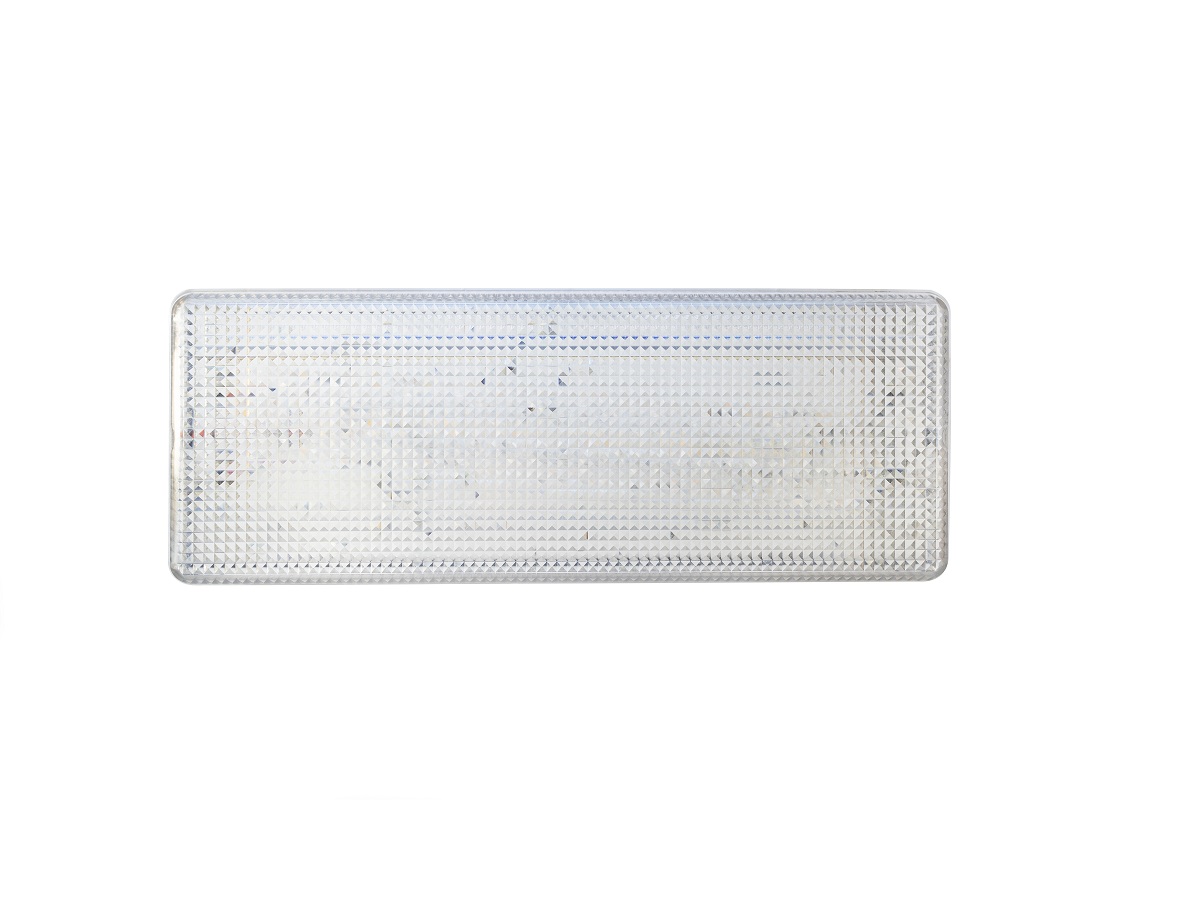

PLP/2S Bulkhead
A high output, IK10 and IP66 bulkhead luminaire, specifically designed for high ceilings. High quality U.V. stabilised white base moulding and a prismatic diffuser which is specifically designed to maximise the useful light on the floor in high ceiling applications. The output, after the diffuser, is 1316 delivered lumen in mains operation and 925 delivered lumen in emergency operation, making this the perfect solution for warehousing or high ceiling applications.
This product operates with the latest LiFePO4 batteries that not only last far longer than traditional style emergency lighting batteries, but consume far less power.
As an option, the non-maintained version of the PLP/2S can be connected to the LiteMesh wirelessly monitored system.
Order Codes
| Order Code | Description | ||
|---|---|---|---|
| PLP/2S/NM | High Output IP66 3-Hour Non-Maintained Bulkhead | ||
| PLP/2S/M | High Output IP66 3-Hour Maintained Bulkhead | ||
| PLP/2S/DA/NM | High Output DALI Self-Test Non-Maintained IP66 3-Hour Bulkhead | ||
| PLP/2S/DA/MD | High Output DALI Self-Test DALI Maintained IP66 3-Hour Bulkhead | ||
| PLP/2S/NM/LMEM | High Output LiteMesh Ready Wireless Self-Test DALI Non-Maintained IP66 3-Hour Bulkhead | ||
| PLP/BEZ | Semi-recessing kit, consisting of trim plate & mounting brackets | ||
| OLP/LG | Self-Adhesive Legend Kit to make IP65 Exit Sign |
Specification
PLP/2S Bulkhead
Specifications
- High Output Bulkhead
- Suitable for Warehousing or High Ceilings
- Prismatic Diffuser Specifically for High Ceilings
- Available as Maintained or Non-Maintained
- Basic Emergency, DALI Self-test or LiteMesh Wireless Self-test
- LiFePO4 Automatic Battery Protection and Recovery
- IP66 and IK10
| PLP/2S/M PLP/2S/NM | |
| Input Voltage | 220-240 Volts AC – 50/60Hz |
| Power Rating Charing * | 3.8W 23mA λ = 0.69 |
| Emergency Duration | 3 Hours |
| Light Source | Vossloh-Schwabe 8.2W 23.5V LED Strip |
| Battery Type | LiFePO4 |
| Battery Voltage | 6.4V |
| Battery Capacity | 4.8Ah |
| Charge Current | 225mA nominal |
| Recharge Time | 24-Hours |
| Cut-Off Voltage | 5V |
| Discharge Current | 900mA Nominal |
| Ambient Temperature | 0°C to 35°C |
| IP Rating | IP66 |
| Dimensions | 370mm x 140mm x 100mm |
| Weight | 2.6kg 2.5kg |
| IK Rating | IK10 |
* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode
