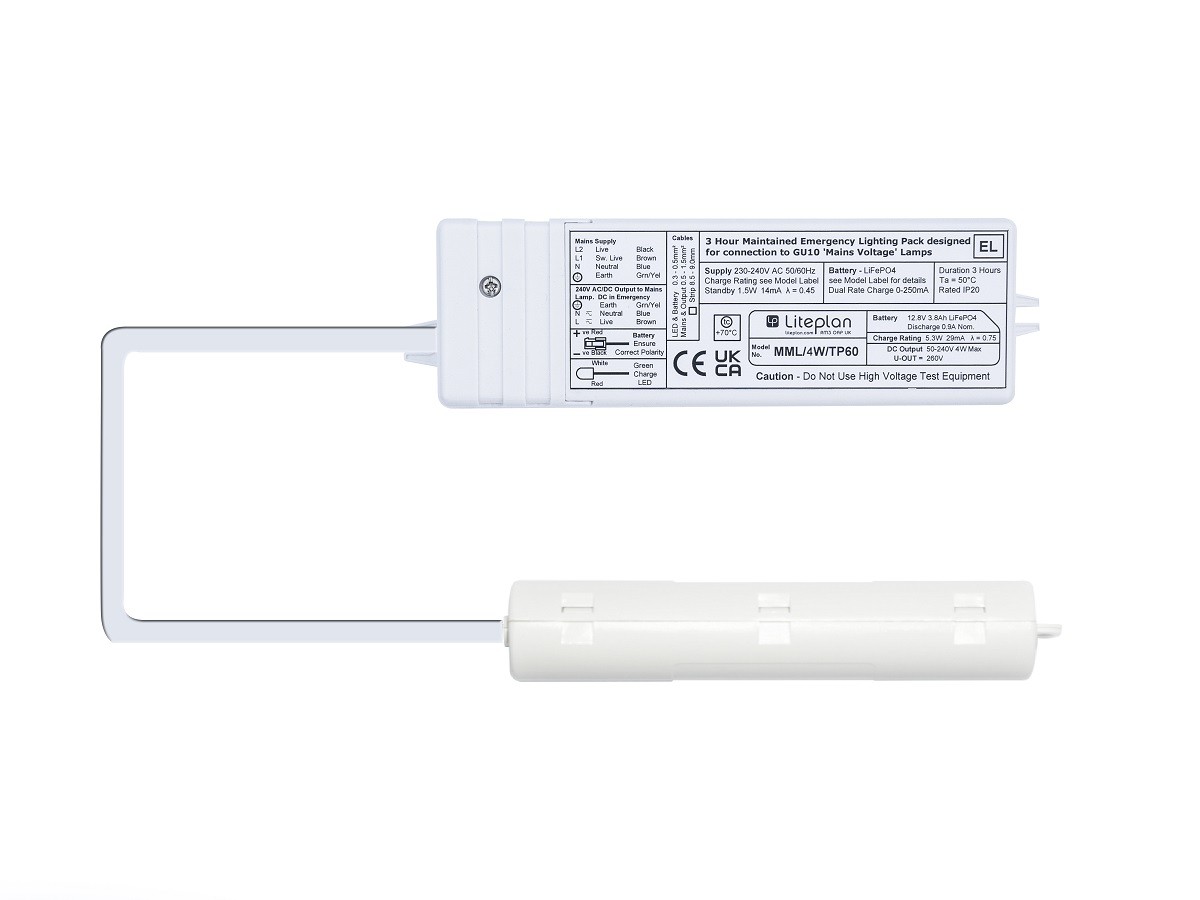

MML/4W – 230V Conversion Kit
A split pack designed to fit through up to a 60mm aperture of a mains voltage downlight. The unit has been designed to provide full output in emergency mode and will power all loads up to 4W, capable of accepting 230Vdc.
| Order Code | Description | ||
|---|---|---|---|
| MML/4W/TP60 | 4W Maximum 3-hour Mains Voltage (DC) Unit |
Please ensure that any lamps/luminaires being run by these units are able to operate on DC.
Specification
MML/4W – 230V Conversion Kit
Specifications
- 100% emergency output factor in mains failure
- Split Enclosure/Batteries
- Extra Long Life LiFePO4 Batteries
- Operates Lamps/Luminaires up to 4W
| MML/4W/TP60 | |
| Input Voltage | 220-240 Volts AC – 50/60Hz |
| Power Rating (charging) | 3.7W 22mA λ = 0.70 |
| Power Rating (standby) | 1.5W 14mA λ = 0.45 |
| Emergency Duration | 3 Hours |
| DC Output | 50V – 240V 8W Max. |
| Aperture | 60mm |
| LiFePO4 Battery Type | 4IFpR27/67 |
| Battery Voltage | 6.4V |
| Battery Capacity | 3.8Ah |
| Charge Current | 225mA Nominal |
| Recharge Time | 24 Hours |
| Cut-Off Voltage | 5V |
| Discharge Current | 900mA |
| Ambient Temperature (Ta) | 0°C-50°C |
| IP Rating | IP20 |
| Module Dimensions | 184mm x 53mm x 24.5mm |
| Battery Dimensions | 159mm x 35mm diameter |
| Required Aperture (cut-out) | 60mm |
| Overall Weight | 0.46Kg |
