LED/43/FL 115° Beam Angle

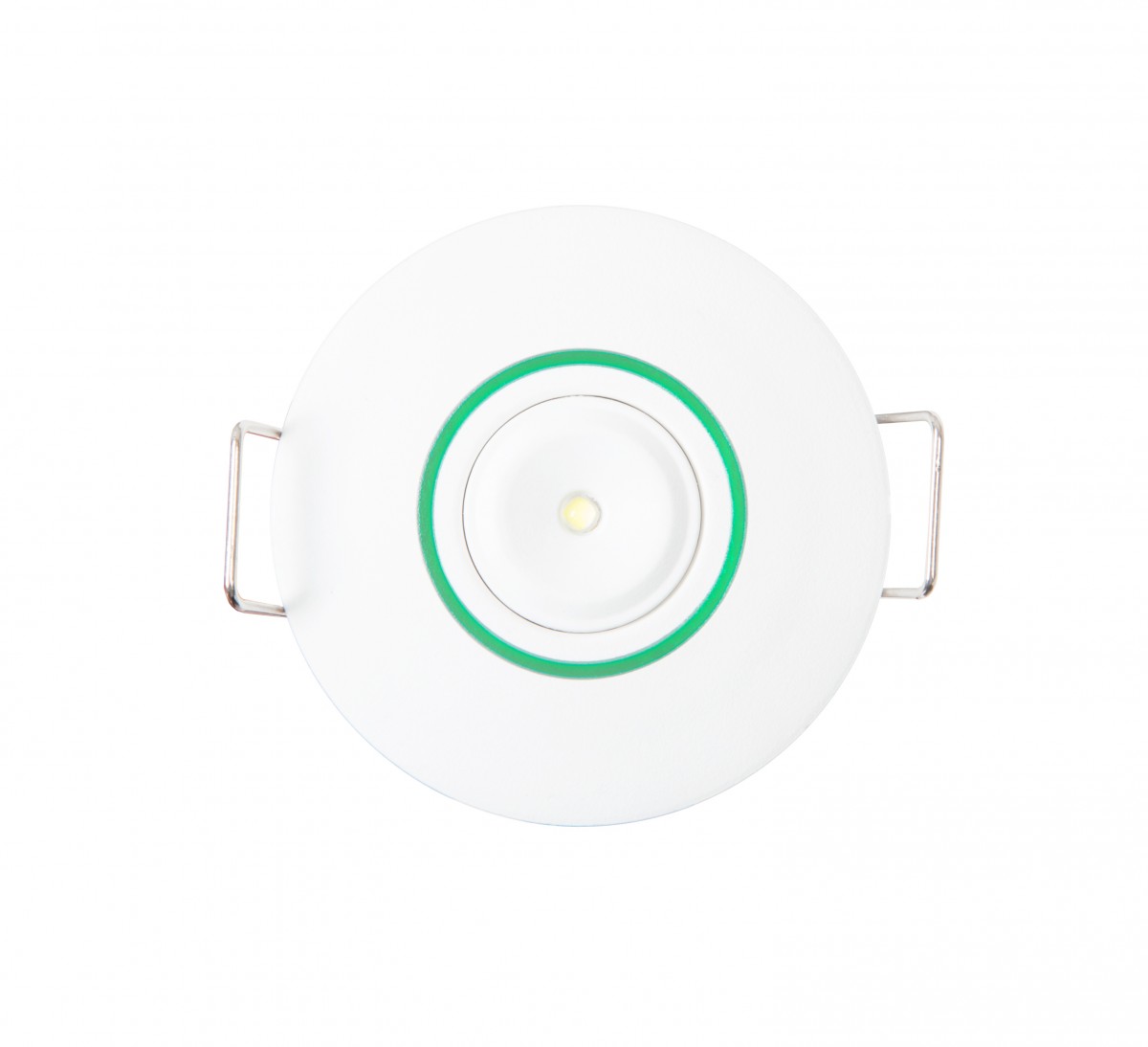

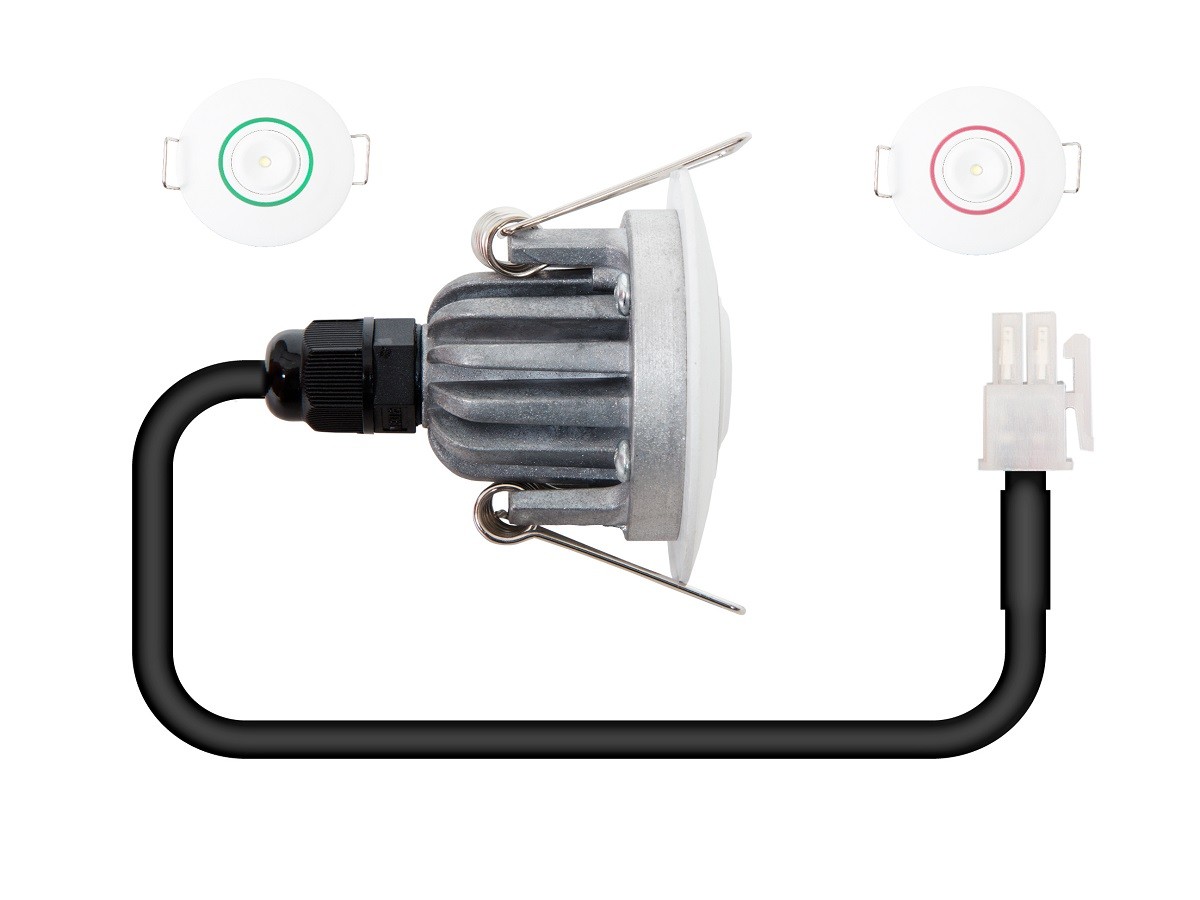

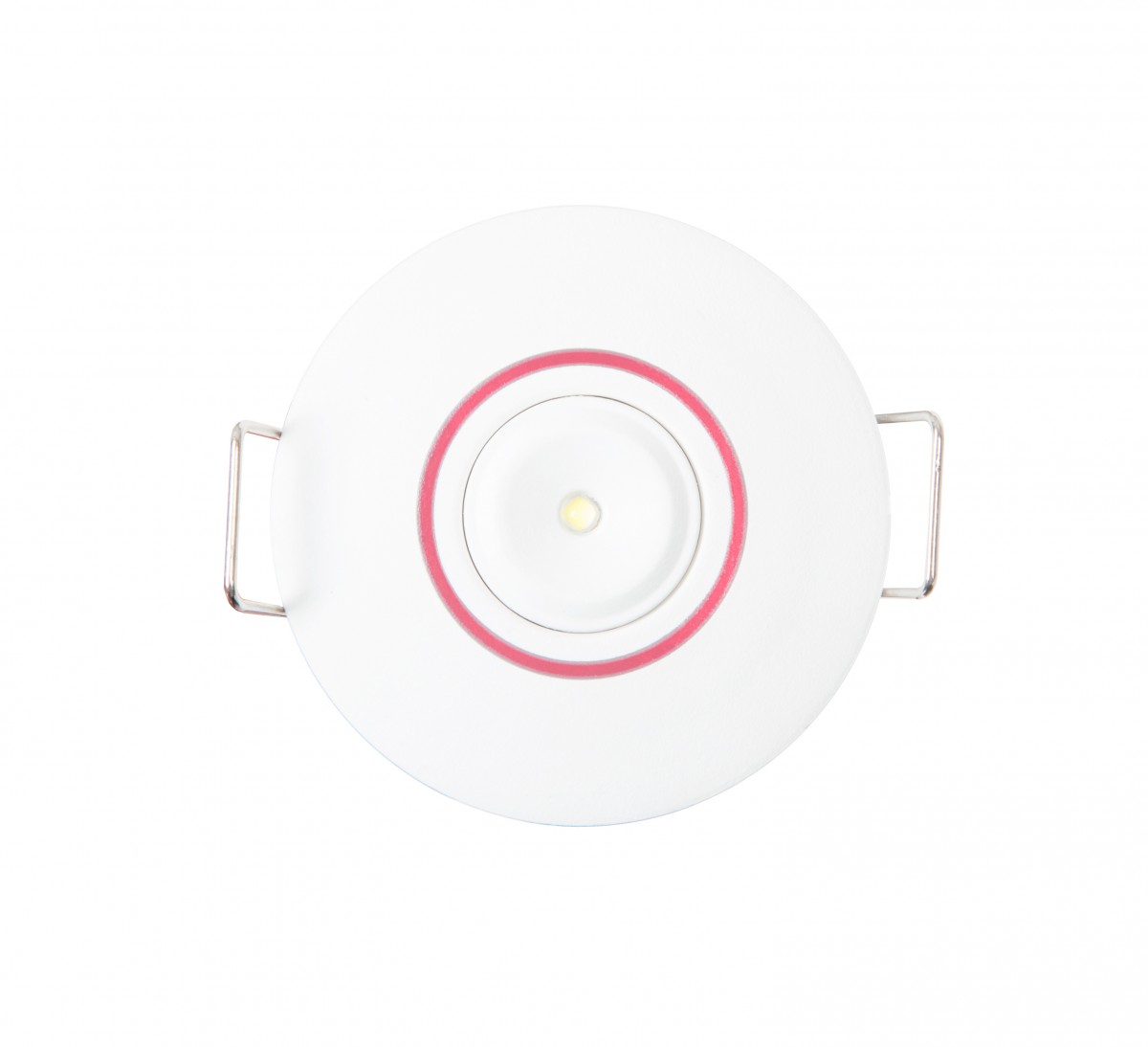

A constant current 115° wide beam angle device which can be driven up to 700mA. The cover incorporates a bi-colour Halo effect LED for green charge healthy and red self-test fault indication.

Compatible Emergency Control Gear Kits

Part Number	Operation	Output	Application
S/ALP/1	Basic Non-Maintained	700mA – 237 Delivered Lumen	Standalone Use
BMM/1	Basic Maintained	700mA – 237 Delivered Lumen	Integral Use
ADM/1	DALI Self-Test Maintained	700mA – 237 Delivered Lumen	Integral Use
S/ADM/1	DALI Self-Test Maintained	700mA – 237 Delivered Lumen	Standalone Use
CBH	Centrally Supplied/Central Battery	700mA – 237 Delivered Lumen	Integral Use
S/CBH	Centrally Supplied/Central Battery	700mA – 237 Delivered Lumen	Standalone Use

Order Codes

Order Code			Description

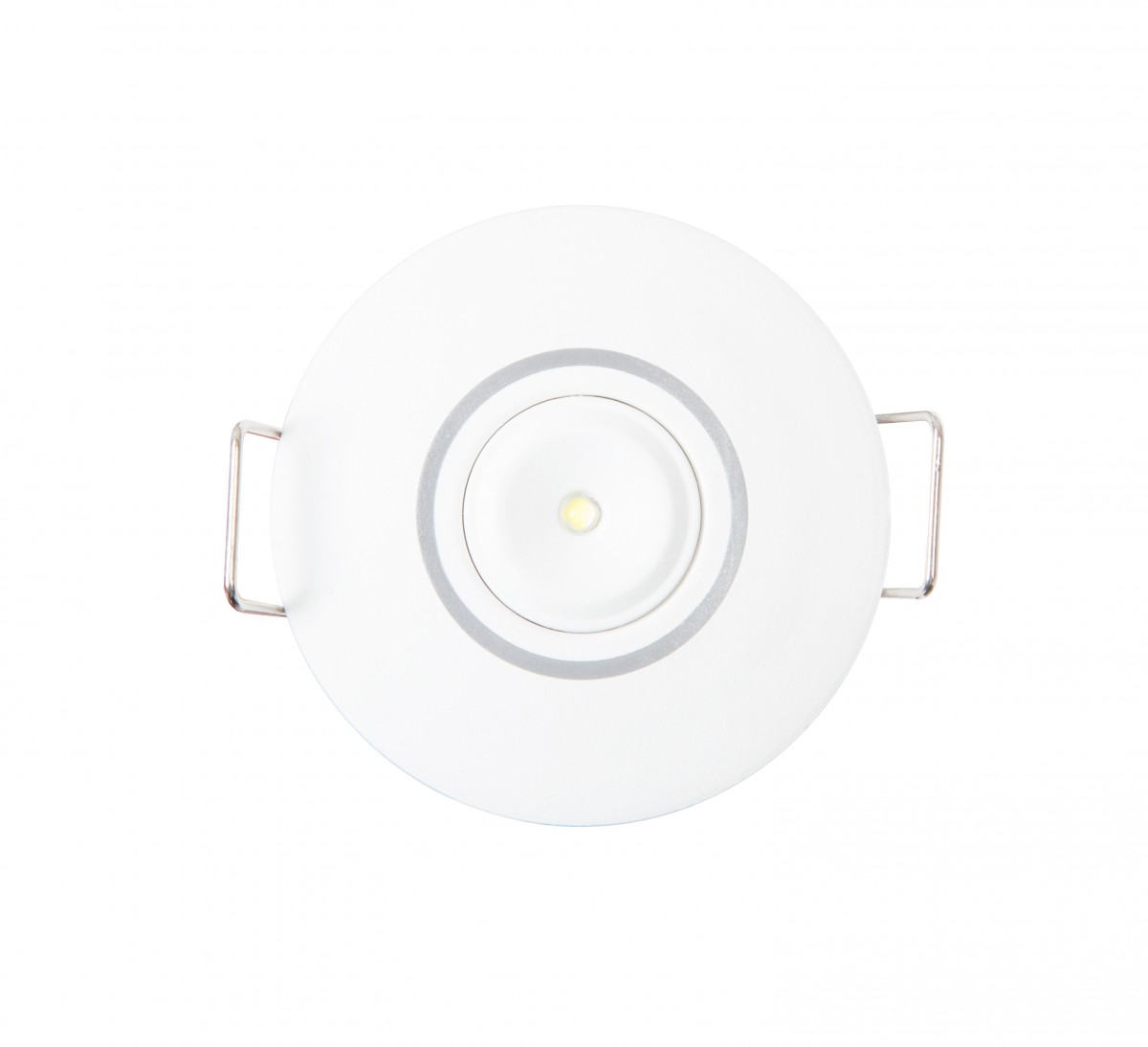

LED/43/FL/W			White (RAL9016) Bezel Constant Current Device

Specification

LED/43/FL 115° Beam Angle

Specifications

High Output – Up to 237 Delivered Lumen
Design Protected Halo Effect Charge/Fault Indication
Ceiling Recess Mounting 43mm Aperture
Standard, Self-Test, DALI Self-Test and Wireless Options
Surface Mount Options Available
Particularly Suitable for Points of Emphasis

	LED/43/FL
Input Voltage	4V DC Max
Power Rating	3W at 700mA
Light Source	Samsung LH315B
Beam Angle	115°
Cut Out	Φ 40mm to 43mm
Light Colour	Cool White
Colour Temp	6000K
Luminous Flux @ 700mA	237 Delivered Lumen
Luminous Flux @ 550mA	201 Delivered Lumen
Luminous Flux @ 350mA	137 Delivered Lumen
General CRI	70
Tc Max	80°C LED Backplate
Wiring Method	Series connection only via C4201 Series Plug
Dimentions	Φ 50mm x 45mm (Min Void Depth 40mm)
Weight	57g
