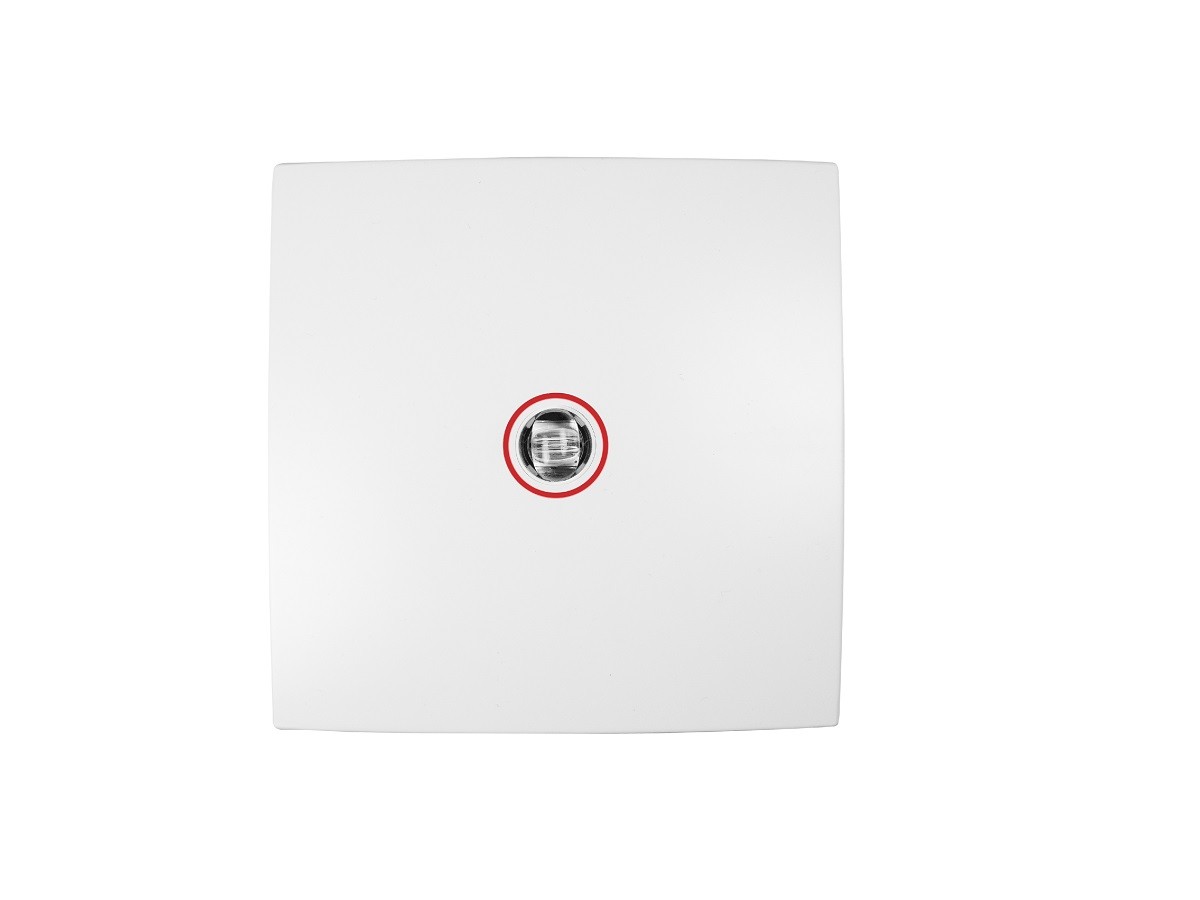

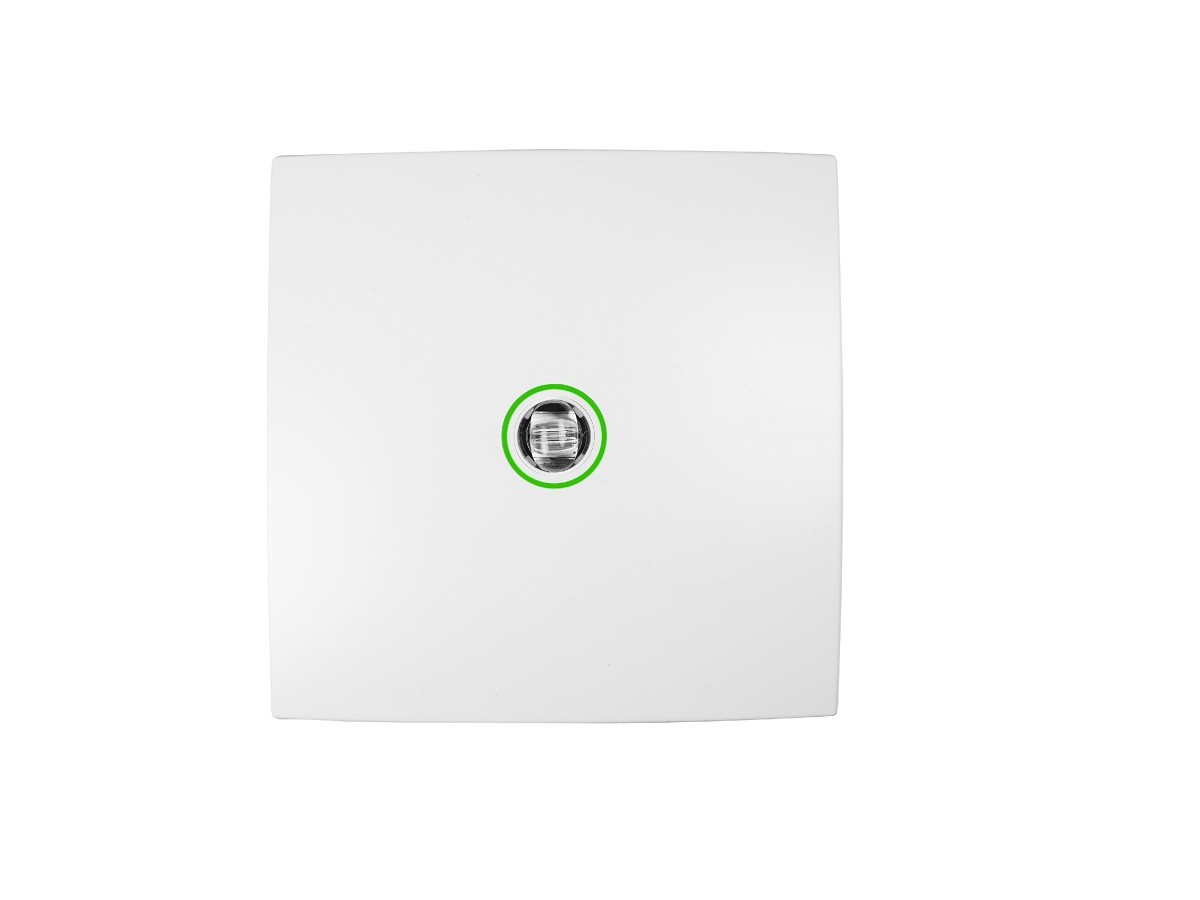

Halo Surface Square (CSW & CSB)
A square surface mount standalone 3-hour emergency LED, featuring our Halo effect charge/fault indicator. The light source is available with either open-area (anti panic) which emits 268 lumen, or a corridor (escape route) optic that emits 266 lumen. The Halo Surface range operates with the latest LiFePO4 batteries that not only last far longer than traditional emergency lighting batteries, but consume far less power.

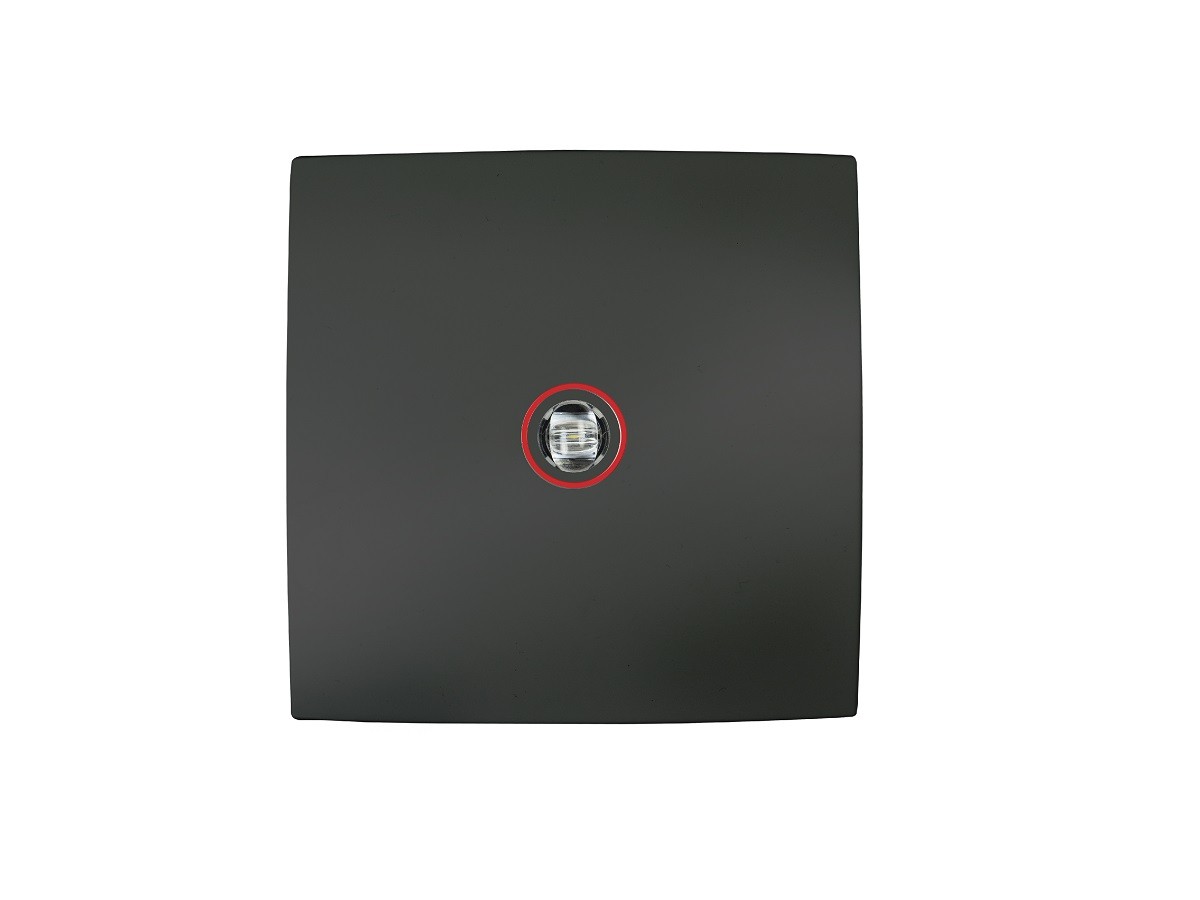

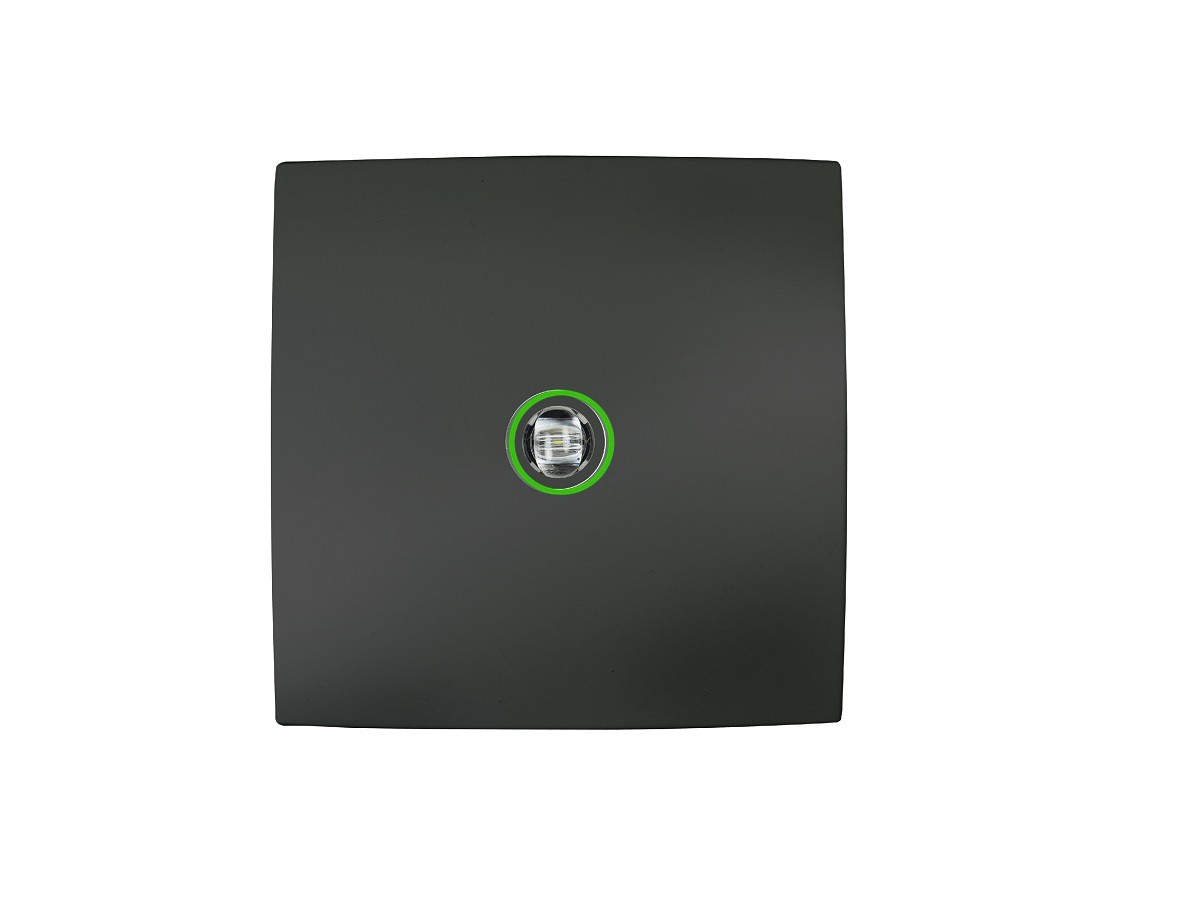

The product is available in either white (RAL9016) or black (RAL9005) and can be supplied as either basic emergency, with DALI-2 Self-test operation or for connection to the LiteMesh Wireless system.
The Halo Surface Square is suitable for use with LiteMesh Wireless self-test system.
Order Codes
| Order Code | Description | ||
|---|---|---|---|
| CSW/1/NM/CO | White Non-maintained c/w Corridor Lens | ||
| CSB/1/NM/CO | Black Non-maintained c/w Corridor Lens | ||
| CSW/1/NM/OA | White Non-maintained c/w Open Area Lens | ||
| CSB/1/NM/OA | Black Non-maintained c/w Open Area Lens | ||
| CSW/1/DA/CO | White Non-maintained DALI-2 Self-Test c/w Corridor Lens | ||
| CSB/1/DA/CO | Black Non-maintained DALI-2 Self-Test c/w Corridor Lens | ||
| CSW/1/DA/OA | White Non-maintained DALI-2 Self-Test c/w Open Area Lens | ||
| CSB/1/DA/OA | Black Non-maintained DALI-2 Self-Test c/w Open Area Lens | ||
| CSW/1/LMEM/CO | White Non-maintained LiteMesh Ready Self-test c/w Corridor Lens | ||
| CSB/1/LMEM/CO | Black Non-maintained LiteMesh Ready Self-test c/w Corridor Lens | ||
| CSW/1/LMEM/OA | White Non-maintained LiteMesh Ready Self-test c/w Open Area Lens | ||
| CSB/1/LMEM/OA | Black Non-maintained LiteMesh Ready Self-test c/w Open Area Lens |
Specification
Halo Surface Square (CSW & CSB)
Specifications
- Basic, DALI-2 self-test or LiteMesh Wireless Self-test Operation
- Square Surface Mount Emergency LED
- Corridor or Open Area Optics Available
- Available as either White or Black
- LiFePO4 Automatic Battery Protection and Recovery
- Up to 268 Delivered Lumen
| CS/COCS/OA | |
| Lens | Corridor LensOpen Area Lens |
| Beam angle | 115° x 155°135° |
| Input Voltage | 230-240 Volts AC – 50/60Hz |
| Power Rating (Basic) Charged * | 0.2W 8mA λ = 0.11 |
| Power Rating (Basic) Charging * | 1.7W 14mA λ = 0.49 |
| Power Rating (DALI & LiteMesh) Charged * | 0.26W 8mA λ = 0.14 |
| Power Rating (DALI & LiteMesh) Charging | 1.7W 14mA λ = 0.5 |
| Emergency Duration | 3-Hours |
| Light Source | 1 x 2W |
| Battery Type | LiFePO4 |
| Battery Voltage | 3.2V |
| Battery Capacity | 3.8Ah |
| Charge Current | 225mA Nominal |
| Recharge Time | 24-Hours |
| Ambient Temperature | 0°C to 35°C |
| IP Rating | IP20 |
| Dimensions | 155mm x 155mm x 58mm |
| Weight | 0.5kg |
* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode.
