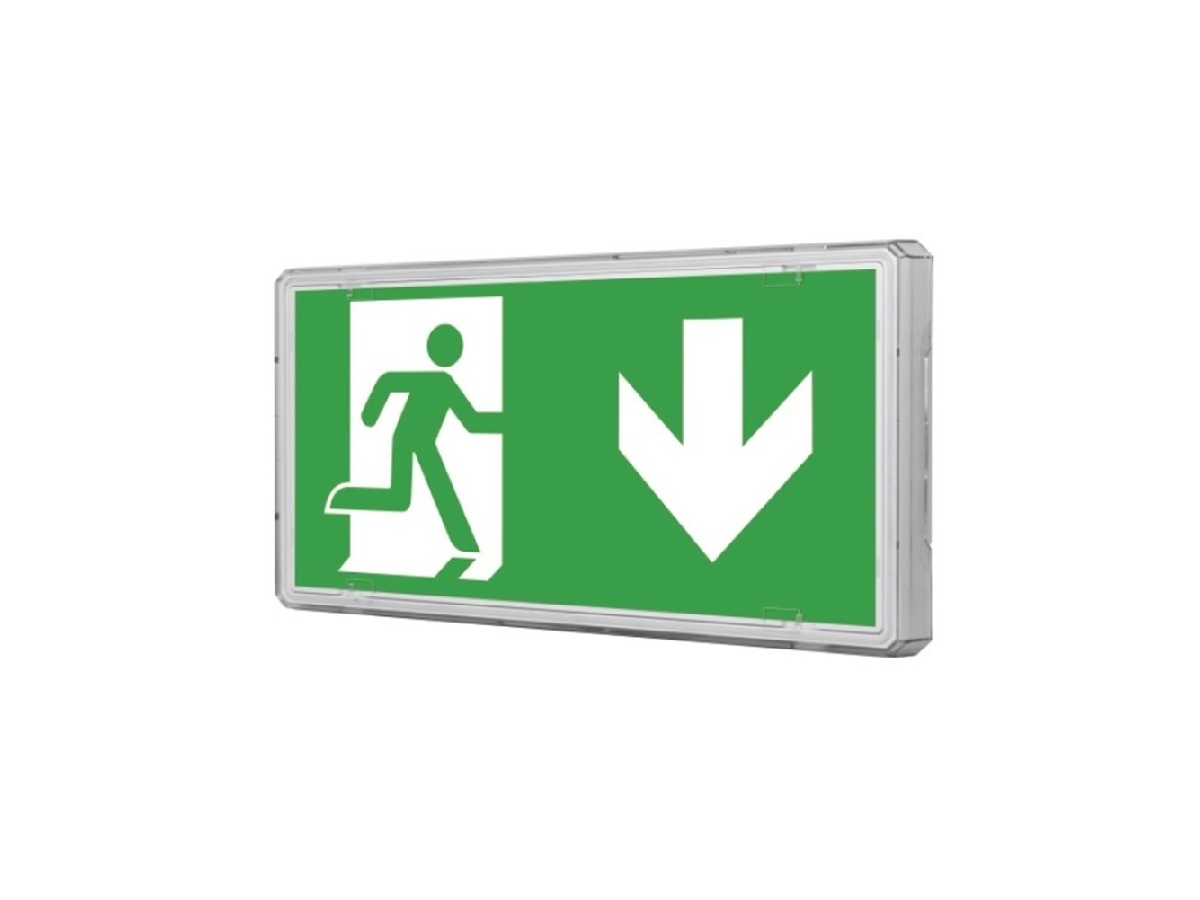

CE5S – IP65 Exit Sign
A stylish and compact IP65 rated LED luminaire suitable for wall mounting. The fitting is available in either a switchable maintained, non-maintained, DALI-2 self-test or wireless self-test maintained. This fitting is not only more compact than a majority of LED exit signs but offers an excellent ingress protection rating of IP65. It is also supplied with a kit of legends for ease of installation and product range stocking.
Specification
CE5S – IP65 Exit Sign
Specifications
- Surface Mount
- Available as Basic, DALI-2 Self-test or Wireless self-test
- White Polycarbonate body
- 25m Viewing Distance
- Long Life LiFeP04 cells
- Ingress Rating – IP65
- DDP (Deep Discharge Protection)
- Samsung LED’s
- LiFePO4 Automatic Battery Protection and Recovery
- IK Rating – IK08
| CE5S/M3 CE5S/DACE5S/LMEM | |
| Mains Supply | 230-240V AC 50/60 Hz |
| Power Rating – Charged * | 0.2W 8mA λ = 0.11 Maintained .26W 8mA λ = 0.14 Maintained |
| Power Rating Charging | 5.7W 31mA λ = 0.75 Non-Maintained 1.7W 14mA λ = 0.5 Non-Maintained |
| Duration | 3 Hours |
| Recharge Period | 24 Hours – Energy saving electronic charger |
| Battery Size & Type | 3.2V 3.8Ah LiFePO4 Cells |
| Charge Current | 225mA Nominal |
| Ingress Protection | IP65 |
| Light Source | 8 pcs Samsung LED |

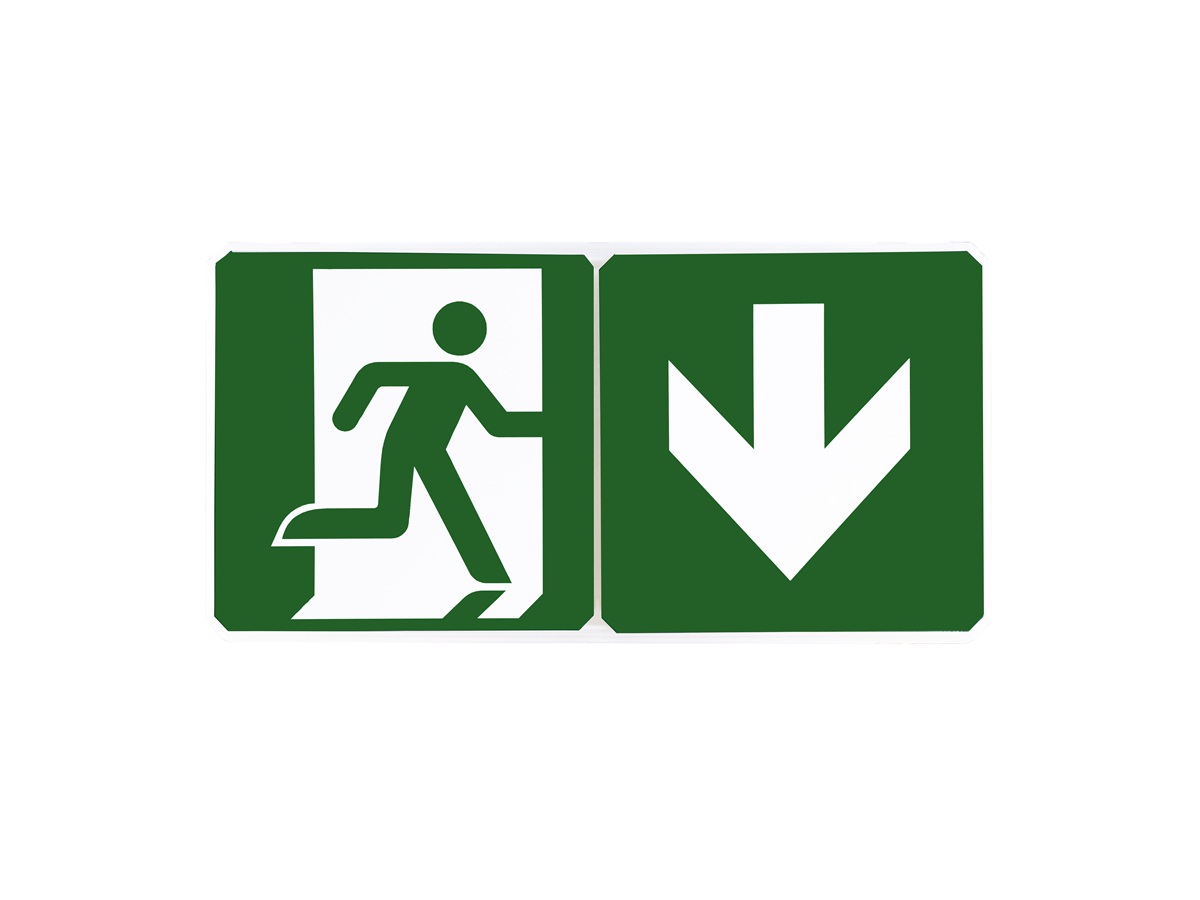

| Legend Mounting Options | Arrow Left, Arrow Right, Arrow Up and Arrow Down |
* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode.
