Overview

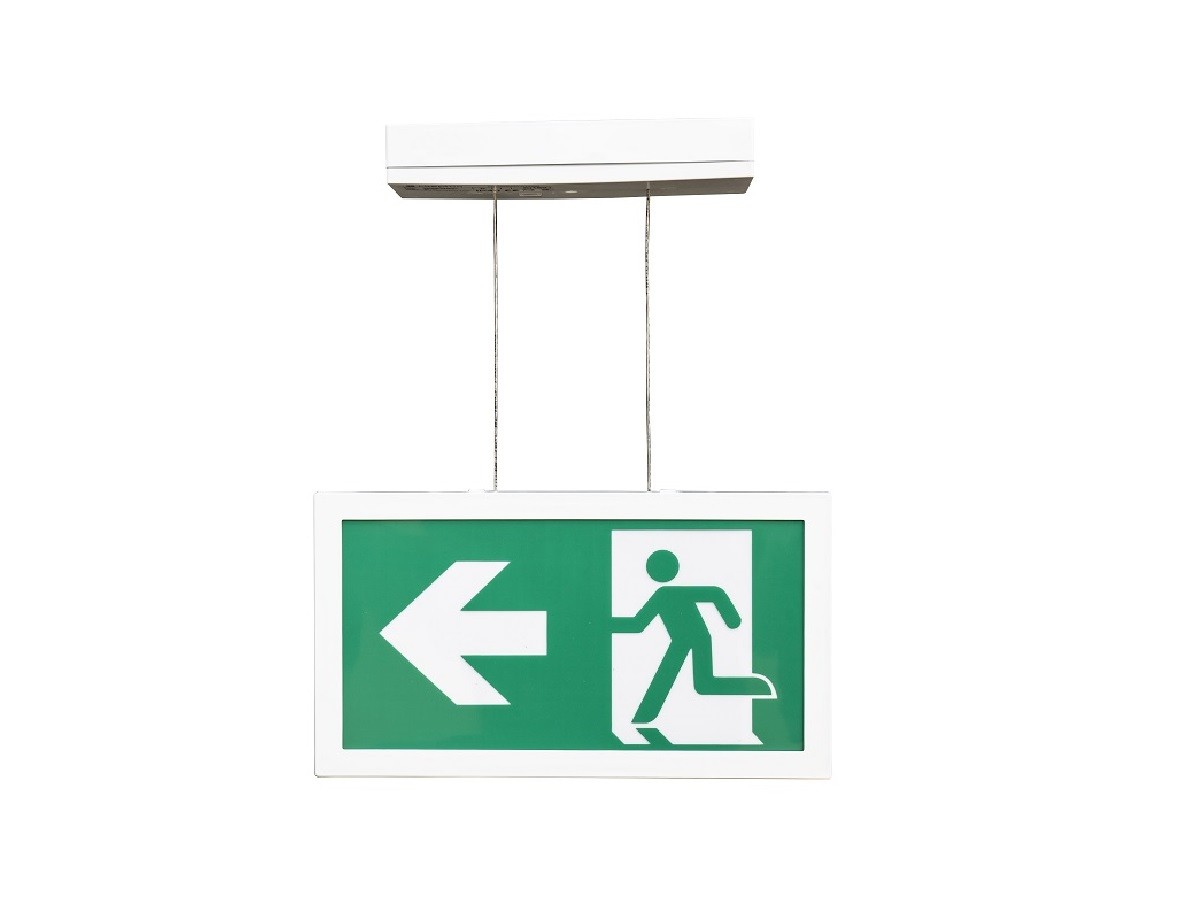

CE2S/SM Suspended Exit Sign
A stylish and compact suspension mounting Single Sided LED Exit Sign, the drop of which can be adjusted up to 1 metre. The unit is available in either a Switchable Maintained/Non-Maintained or as DALI-2 Self-Test Maintained via Mains Switch. The unit is supplied with a Plexi glass screen printed legend plate which offers an impressive 30m viewing distance. The legend panels supplied with the product are, Arrow Down (AD), Arrow Left (AL) and Arrow Right (AR). Arrow Up (AU) is available as an accessory if required.
This exit sign includes and additional downward facing light panel.
This product is suitable for use with the LiteMesh wireless emergency monitoring system.
Order Codes
| CE2S/SM/M | Switchable Maintained | ||
|---|---|---|---|
| CE2S/SM/DA | DALI-2 Self-Test Maintained via Mains Switch | ||
| CE2S/SM/LMEM | LiteMesh Ready Wireless Operation |
Specification
CE2S/SM Suspended Exit Sign
Specifications
- Suspension Mount (adjustable to 1m maximum)
- White Polycarbonate Body
- Long Life LiFeP04 Cells
- Basic, or DALI-2 Self-test Operation
- 30m Viewing Distance
- ISO Legends as Standard
- Deep Discharge Protection
- Samsung LED’s
- Basic, Self-Test, DALI Self-test or LiteMesh Wireless operation
- Additional Downward Facing Light
| CE2S/SM/M CE2S/SM/DACE2S/SM/LMEM | |
| Mains Supply | 220-240V AC 50/60Hz |
| Power Rating – Charged * | 0.26W 8mA λ = 0.14 |
| Power Rating Basic – Charging * | 5.7W 31mA λ = 0.75 Maintained |
| Power Rating DALI Self-Test – Charging * | 1.7W 14mA λ = 0.5 Non-maintained |
| Duration | 3-Hours |
| Recharge Period | 24 Hours – Energy saving electronic charger |
| Battery Size & Type | 3.2V 3.8Ah LiFeP04 Cells |
| Charge Current | 225mA Nominal |
| Rating | IP40 |
* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode.
