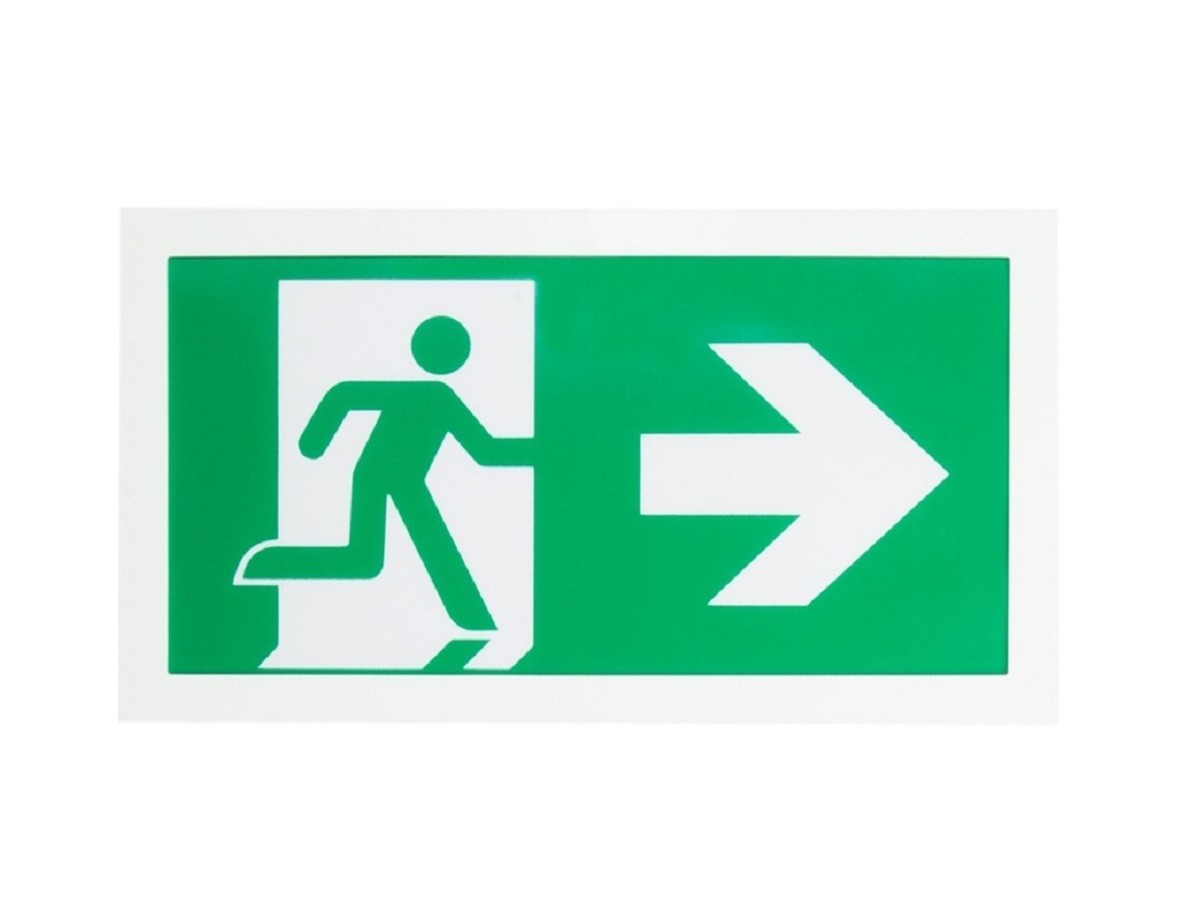

CE2S Wall Mount Exit Sign
A stylish and compact wall mounting Single Sided LED Exit Sign that can either be surface or semi-recesses mounted. The unit is available in either a Switchable Maintained/Non-Maintained or as DALI-2 Self-Test Maintained via Mains Switch. The unit is supplied with a Plexi glass screen printed legend plate which offers an impressive 30m viewing distance. The legend panels supplied with the product are Arrow Down (AD), Arrow Left (AL) and Arrow Right (AR). Arrow Up (AU) is available as an accessory.
This exit sign includes and additional downward facing light panel.
This product is suitable for use with the LiteMesh system, where required.
Order Codes
| CE2S/M | Switchable Maintained | ||
|---|---|---|---|
| CE2S/DA | DALI-2 Self-Test Maintained via Mains Switch | ||
| CE2S/LMEM | LiteMesh Ready Wireless Self-Test Maintained |
Specification
CE2S Wall Mount Exit Sign
Specifications
- Surface Mount (Wall)
- White Polycarbonate Body
- Long Life LiFeP04 Cells
- Basic, DALI-2 Self-test, or Wireless Self-test Operation
- 30m Viewing Distance
- ISO Legends as Standard
- Deep Discharge Protection
- Samsung LED’s
- LiFePO4 Automatic Battery Protection and Recovery
- Includes and Additional Downward Facing Light Panel
| CE2S/M CE2S/DACE2S/LMEM | |
| Mains Supply | 230-240V AC 50/60 Hz |
| Power Rating – Charged * | 0.2W 8mA λ = 0.11 Maintained |
| Power Rating Basic – Charging * | 5.7W 31mA λ = 0.75 Maintained |
| Power Rating DALI – Charging * | 1.7W 14mA λ = 0.5 Non-maintained |
| Duration | 3 Hours |
| Recharge Period | 24 Hours – Energy saving electronic charger |
| Battery Size & Type | 3.2V 3.2Ah LiFeP04 Cells |
| Charge Current | 225mA Nominal |
| Rating | IP40 |
* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode.
